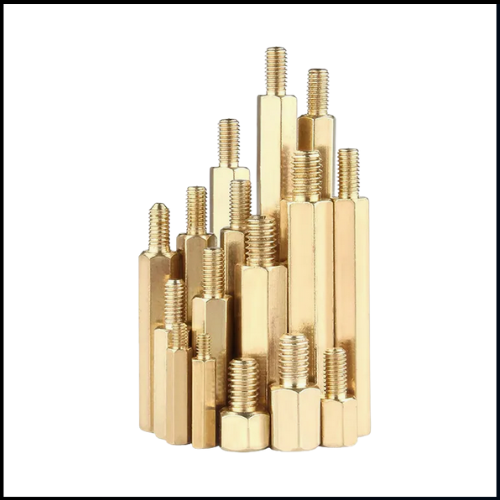

Brass Hex Clearance Spacers

We are resolved to offer our customers a wide exhibit of Brass Hex clearance spacers. These spacers are accuracy designed by the experts, who take after worldwide benchmarks.

Brass Hex Clearance Spacers

In addition, the offered items are broadly utilized as a part of vehicles and development divisions. The experts of our firm convey these metal hex spacers in brilliant bundling inside of the guaranteed time. Further, customization of these items is likewise given by us to meet the particular necessities of our customers.

Nylon 6/6 UL94V-2 is used to make the spacers and saddles for the Satish Enterprise. Force fit, hex, and round are additional options for Hexagonal and Clearance Spacers.

Brass Hex Clearance Spacers Brass Hex Clearance Spacers Brass Hex Clearance Spacers

There are many different lengths and diameters of Satish Enterprise hexagonal and Clearance spacers, as well as locking spacers and saddles. While clearance spacers can be made of aluminum, plastic, or brass, hexagonal spacers can only be made of brass or plastic.

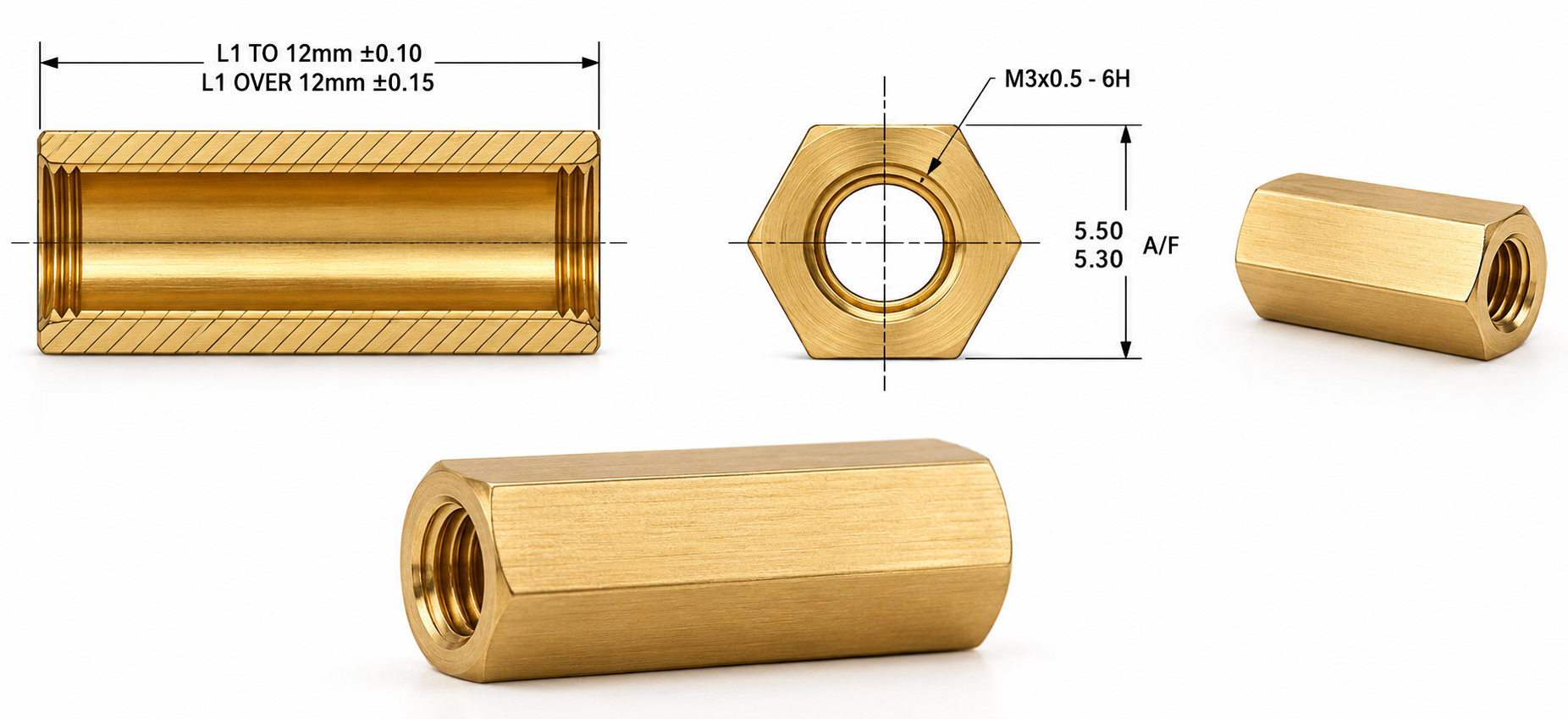

brass hex clearance spacers drawing

Brass Hex Clearance Spacers come in a wide range of lengths, diameters, and force-fit, hex, or round alternatives. They also include locking spacer and saddles.

We produce threaded and unthreaded round spacers. Due to the superior raw materials, the quality of our brass round spacers is excellent. The primary benefit of using brass metal spacers is that it resists corrosion.

Technical Details of Brass Hex Clearance Spacers

Material Specification

Material: High-quality Free Cutting Brass (IS 319 / CW614N / CZ121 or equivalent)

Composition: Copper–Zinc Alloy

Properties:

  • Excellent machinability
  • Good electrical conductivity
  • High corrosion resistance
  • Non-magnetic
  • Long service life

Dimensional Specifications

Internal Bore (Clearance Hole)
Type: Plain / Unthreaded
Function: Allows free passage of screws or bolts
Common Clearance Sizes:For M2, M2.5, M3, M4, M5, M6 Imperial sizes on request
Tolerance: As per ISO/DIN or customer specification

Body Shape

External Shape: Hexagonal
Across Flats (A/F):

  • M3: ~5.5 mm
  • M4: ~7 mm
  • M5: ~8 mm
  • M6: ~10 mm
  • Enables easy tightening using standard spanners

Length

Standard Lengths: 3 mm to 100 mm
Custom Lengths: Available as per drawing or application
Length Tolerance: ±0.05 mm or as specified
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
